5Ton Tank ISO Container Turnover Rotation Machine Rotation Revolving Frame Machine

MOQ: 1 SATZ
Standard Packaging: Holzpalette
Delivery Period: 10-15 Tage
Zahlungs-Methode: L/C, T/T
Supply Capacity: 100 Sätze/Monat
Ausführliche Information
Beschreibung des Produkts
Ausführliche Information
Herkunftsort
PR.CHINA
Markenname
OTA
Zertifizierung
CE, ISO
Hervorheben:

5Ton tank rotation machine

,

ISO container turnover frame

,

Revolving frame machine for tanks

Beschreibung des Produkts

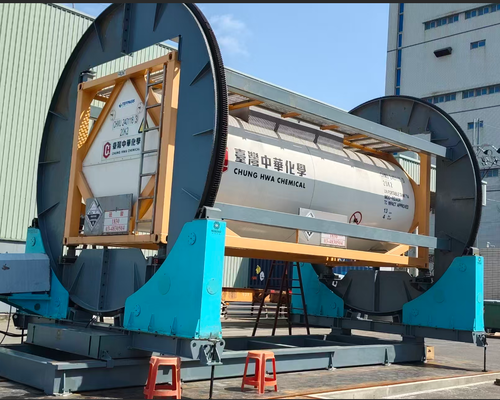

5Ton Tank ISO Container Turnover Rotation Machine
The rotation device is designed for rotating ISO tanks and other standard containers for cleaning, repair, testing, fabrication, and maintenance operations.
Operation Process
The tank/container is loaded onto the seats, with one circle moving on rails to position the container into the circle corners. Once all corners are secured against the machine frame and automatically fixed, the circles rotate via motor drive with self-lock functionality. When the container reaches the desired position, rotation stops, enabling convenient repair or cleaning operations.
ISO Tank Container Rotation Machine Specifications
Max Loading: 5Ton
Job Size: Standard container sizes 20', 40'
Ring Rotate Speed: Controlled by "Schneider" inverter
Rotating Method: Driven by chain & sprocket wheel
Rotate Motor Power: 2*0.75kW
Travel Motor Power: 2*0.55kW
Idler Travel Stroke: 5500-13000mm
Idler Travel Speed: 3000mm/min
5Ton Tank ISO Container Turnover Rotation Machine Rotation Revolving Frame Machine 0
Supply Range (Per Set/Pair)
  • -01 power unit with motors & gearbox, with rotating ring, fix type
  • -01 Idler unit with rotating ring, travel type
  • -01 Pendant box with 15mtrs cables (as spare)
  • -01 control cabinet with inverter: Schneider
  • -03 pushbuttons
  • -01 speed control switch
  • -01 digital speed displayer
  • Relative documents including mechanical drawings, electrical diagram, operation manual, etc.
5Ton Tank ISO Container Turnover Rotation Machine Rotation Revolving Frame Machine 1 5Ton Tank ISO Container Turnover Rotation Machine Rotation Revolving Frame Machine 2 5Ton Tank ISO Container Turnover Rotation Machine Rotation Revolving Frame Machine 3
Key Functions and Benefits
The main function of ISO tank container turning equipment is to facilitate turning operations for tanks and containers to meet specific operational requirements.
  1. Improve Operating Efficiency: Quickly and effectively turns tanks or carriages to required operating angles or heights, significantly improving operational efficiency.
  2. Easy Cleaning and Repair: Enables thorough cleaning of accumulated dirt and impurities from container bottoms and sides. Facilitates maintenance by positioning containers at optimal repair angles.
  3. Adapt to Different Operating Scenarios: Available in fixed and mobile configurations to suit various operational requirements. Fixed equipment handles large containers or heavy goods, while mobile equipment offers flexibility for different locations.
  4. Ensure Operational Safety: Advanced control systems and safety protection devices guarantee stability and security during turning operations, protecting both operators and containers from damage.
Stichworte:

ISO-Rotator 20 Fuß,

ISO-Rotator 40ft,

ISO-Rotationsmaschine für Behälter
